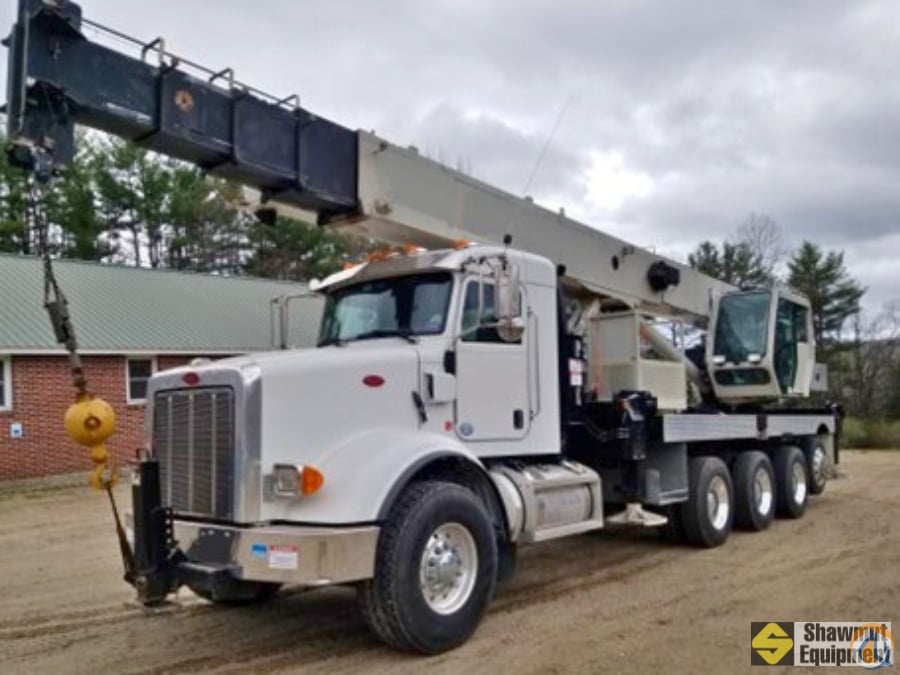

2013 National NBT45127 S/N: 298676 45-Ton Hydraulic Crane

Crane Specifications

- 34’ to 127' 5-Section Full Power Telescoping Main Boom
- Three (3) Sheave Quick Reeve Main Boom Nose
- 31’ to 55’ Boom Extension
- Graphical LMI System w/ Work Area Definition System
- All Steel Crane Cab
- Deluxe Seat w/ Armrest Mounted Single-Axis Hydraulic
  Pilot Operated Controllers
- Hot Water Cab Heater w/ Defroster which is Diesel Fired
- Fire Extinguisher
- Dual Cab Mounted Work Lights
- Air Conditioning in Both Cabs
- Signal Horn and Engine Start / Stop Switch
- 360 Degree Continuous Rotation w/ “Glide Swing”
- 5,400 lbs. Non-Removable Counterweight
- Variable Displacement Piston Pump
- 100 Gallon Hydraulic Reservoir
- Electronic Drum Rotation Indicator
- Drum Cable Follower
- Aux Winch
- 5/8” 35x7 Class Main & Aux Winch Wire Rope
- Headache Ball
- Hydraulic Front and Rear Outriggers Can Be Positioned at
  0%, 50% and 100% Span
- SFO
- Standard Torsion Box and Decking Length
- Aluminum Flat Decking
- Back Up Alarm & Hour meter in Crane Cab
- Outrigger Position Monitoring System & Motion Alarm
- Electronic Engine Throttle
- ICC Safety Kit
- Air Shift PTO
- Counter-Clockwise Rotation Pump
- Hydraulically Driven Compressor w/ Electric Fan Condenser
- Single Sheave Hook Block
- Radio Remote Control
- Rotating Pin-On Basket

Truck Specifications

- 2014 Peterbilt model 367
- Cummins ISX12 425 h.p. Diesel Engine
- Fuller RTO16908LL 10 speed manual transmission
- 20,000 lb Front Axle Weight Rating
- 61,000 lb Rear Tridem Axle Weight Rating
- 13,500 lb Tag Axel Weight Rating
- Approx Miles:  49,501 (as of 05/07/2024)
- Approx Hours: 5,971 Engine (as of 05/07/2024)
- Approx Hours:  3,669 PTO (as of 05/07/2024)
